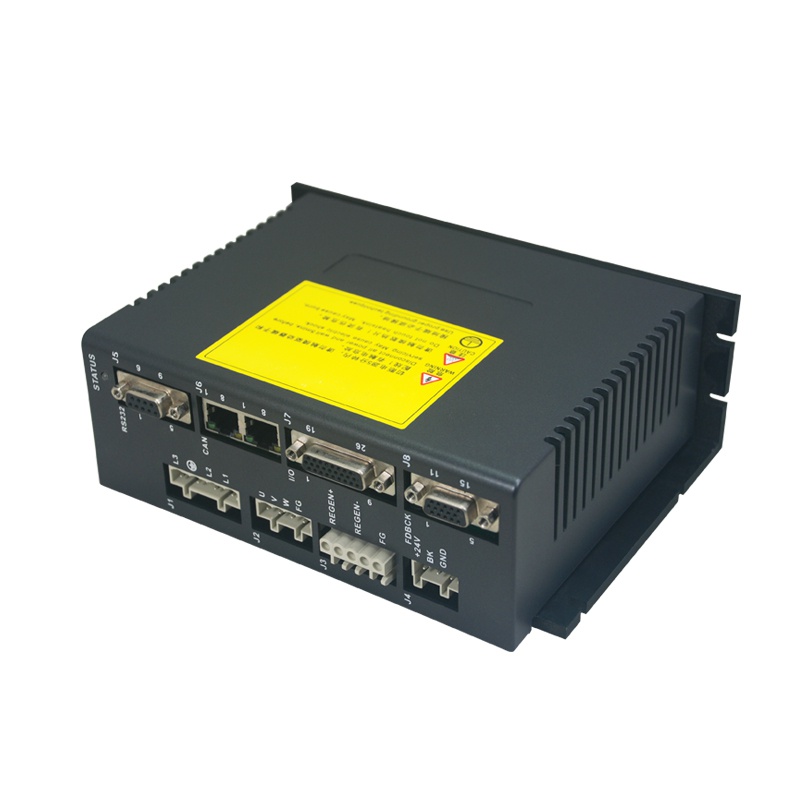

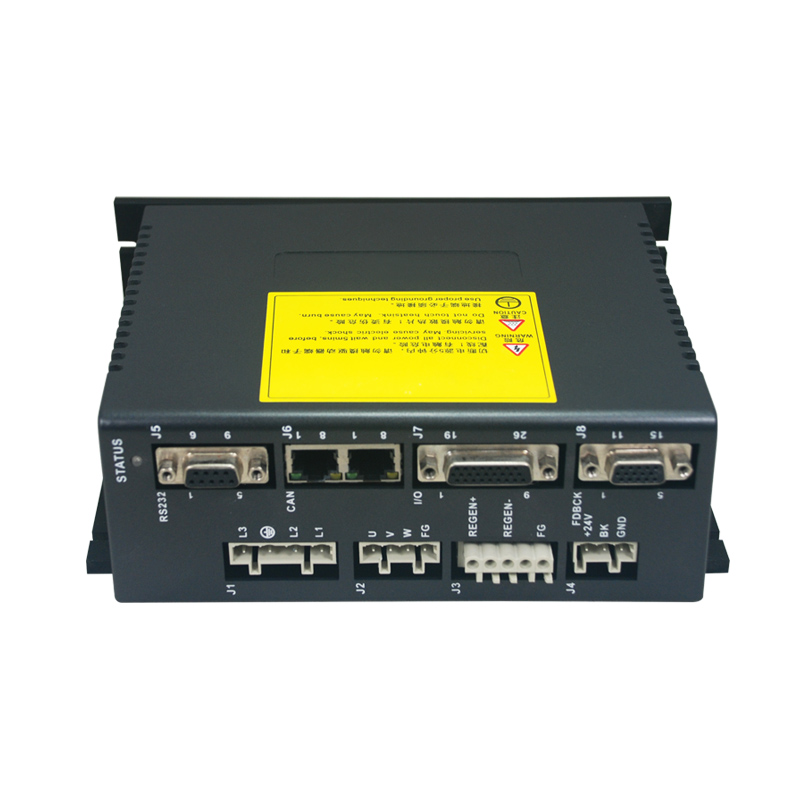

APX Series Precision Programmable DC / AC Servo Driver

APX Series Programmable Precision DC / AC servo driver is a universal, high performance, AC / DC power supply, compact full digital servo drive with the maximum power of up to 5KW. AP series driver application software tools provide a very powerful, flexible, fast, simple and easy software platform for the application of this series of drivers. It integrates programmable motion control, PLC and servo drive functions. It is mainly used for position, speed and torque control of linear (DDL), torque (DDR), voice coil, brushless and brushless servo motors.

    Technical Parameter

    Servo Drive Series APX Series DC/AC Servo Drive
    Drive Motor DDL Motor、DDR Motor、Voice Coil Motor、Brush Motor、Brushless Motor
    Control Model Motion Sequence, Point-to-point, PVT, Electronic Gear, Cam, Position, Speed And Torque Control Mode.
    Running Mode Independent programmable logic control (Stand-alone), External Control, or Distributed Network Control.
    Communication Type RS232、CAN/CANopen、EtherCAT
    Input And Output 1 ±10V Analog Input
    12 Digital Inputs, No Optical Isolation, 1 Enabling, 11 Programmable General-purpose
    4 Digits Programmable Output, No Optical Isolation
    Feedback Orthogonal incremental encoder, maximum rate 5M line/s
    Digital Holzer (U, V, W, 120 degree electrical phase difference)
    Analog cosine encoder (Sin/Cos) optional
    Rotary transformer (Reslover) optional
    Second encoder input or output (full closed loop control)
    Logic Power Supply Voltage 18-30VDC
    Motor Supply Voltage 80-240VAC/100-340VDC
    All-round Protection Design Overcurrent, Short Circuit, Grounding, Overvoltage, Undervoltage, I2t, And Control Errors.

    Sizing Table

    Servo Driver Model Supply Voltage
    Continuous Current
    Peak Current
    Shape Size
    Type Of Encoder
    APX-06A230-CALTE 80…230 6 18 195 x 150 x 65mm Incremental Encoder
    APX-12A230-CALTE 80…230 12 36 195 x 150 x 65mm Incremental Encoder
    APX-20A230-CALTE 80…230 20 40 195 x 150 x 65mm Incremental Encoder
    APX-20A230-CALTSC 80…230 20 40 195 x 150 x 65mm Sin/Cos Encoder
    APX-20A230-CALTR 80…230 20 40 195 x 150 x 65mm Rotary Transformer
