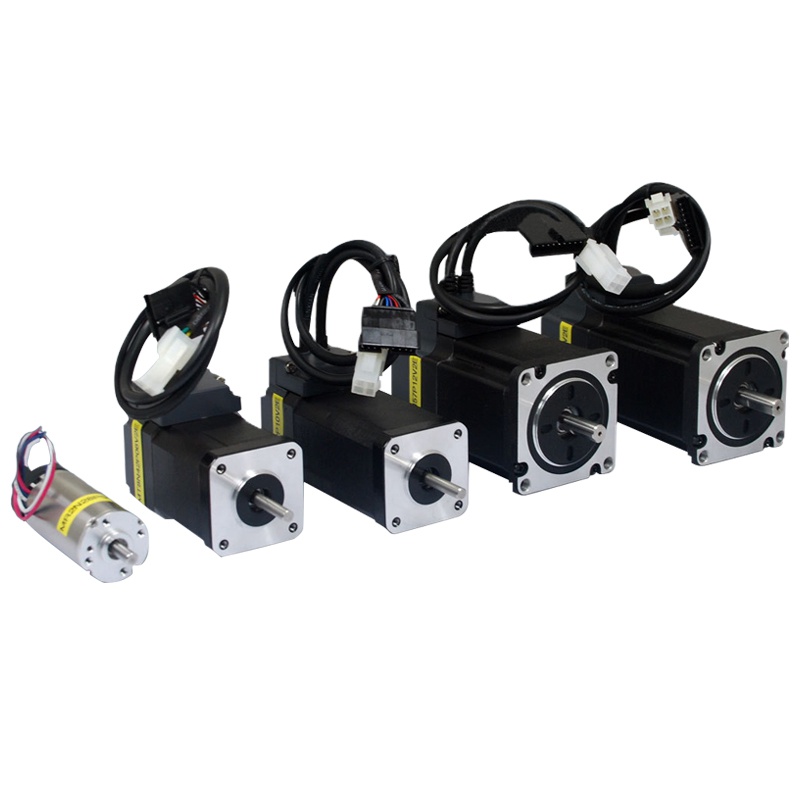

MT Series DC Brushless Servo System

MT brushless servo system is mainly composed of IDM series servo driver and DC brushless servo motor compatible with NEMA flange size. DC power supply, with a maximum power of up to 600W, is mainly used in small mobile robots, automatic detection and assembly, subway screen doors, medical equipment and other industries.

Download

Technical Parameter

DC Brushless Motor

Installation dimension compatible NEMA 42,57,86 standard step flange
DC power supply 24-48VDC, the maximum power of up to 600W
Rated speed 3000RPM, up to 5000RPM
Small volume, 0.1-2.0N.m constant torque,high cost performance

DC Brushless Motor Driver

24V/48VDC DC power supply, suitable for battery power supply or personal safety requirements.
Torque, Speed And Position
Setting motor and adjusting driver parameters based on Windows PC software
Pulse + direction or encoder AB digital control input

Options

±10Vanalog control instruction input driver is optional
RS232/485 communication control command input driver is optional
CAN/CANopen communication control command input driver is optional
C/C++/VB/VC/LabView Motion function library is optional

Other

Planetary Reducer And Brake
The motor can be customized according to some special requirements of the customer

Sizing Table

Motor Model	MT8N42P06V2E	MT8N42P10V2E	MT8N57P12V2E	MT8N57P20V4E
Rated Power (W)	60	100	125	200
Rated Torque (N.m)	0.2	0.32	0.4	0.64
Rated Speed (RPM)	3000	3000	3000	3000
Rated Voltage VDC(V)	24	24	24	48
Rated Current (A)	4	5.2	6.9	5.2
Length (mm)	85	105	95	115
Weight (kg)	0.55	0.65	1	1.3
Recommend Driver	IBL3605A	IBL3605A	IDM640- 8EIA	IDM640- 8EIA
Size
